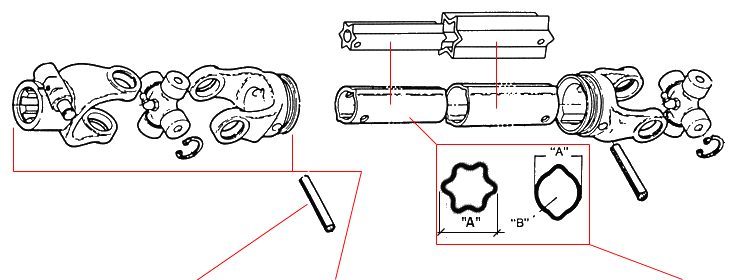

SHAFT SERIES |
ROLL PIN |
INNER JOINT |
A |
B |
INNER TUBE |
|
 |
B1140
(2 req)
|
Part No.
A10001
|
23.8mm
15/16"
|
5mm
3/16"
|
|
|
 |
A1065
(2 req)
|
Part No.
A20001
|
34.5mm
1 3/8"
|
4mm
5/32"
|
|
|
|
Order
parts
|
34.5mm
1 3/8"
|
4mm
5/32"
|
|
|
Standard for W210-W2300
|
|
Part No. A21001
|
34.5mm 1 3/8"
|
4mm 5/32"
|
|
Spec. for 39.5mm tube
|
LEMON PROFILE TUBE
|
|
Order parts
|
39.5mm 1 1/2"
|
5mm 3/16"
|
|
|
A1075
75mm long
(2 required)
OR
A1090
90mm long
(2 required)
|
Part No.
A22001
|
39.5mm
1 1/2"
|
5mm
3/16"
|
|
|
Quick Release Type
A35004
1 3/8" x 6 Splines
for Lemon Profile Tube
P400 Series - Use Bareco Guard |
|
39.5mm
1 1/2"
Lemon Profile
Tube
|
5mm
3/16"
Lemon Profile
Tube
|
Quick Release Type
A35001
1 3/8" x 6 Splines
for Star Profile Tube
P400 Series - Use Bareco Guard |
|
51mm
2"
Star Profile
Tube
|
6mm
1/4"
Star Profile
Tube
|
OPTIONAL
for W2400 Series.
Star Profile Tube as below
|
|
|
|
Star Profile
Hollow Bar
|
|
|
|
|
Quick Release Type
A36001
1 3/8" x 6 Splines
P500 Series - Use Bareco Guard |
Clamp Type
A36001520
1 3/4" x 20 Splines
|
|
|
A1490
100mm long
(2 required) |
Quick Release Type
A026001
1 3/8" x 6 Splines
A026001120
1 3/4" x 20 Splines
Clamp Type
A026001520
1 3/4" x 20 Splines
600 Series - Use Bareco Guard |
|
61mm
2 7/16"
|
6mm
1/4"
|
Star Profile
|
|
A1490
100mm long
(2 required) |
|
HEAT
TREATED
61mm
2 7/16"
|
6mm
1/4"
|
Star Profile
|
