KRONE - LARGE SQUARE BALER PTO Drivelines



APPLICATION
PART No
Tractor End wide angle
Inner drive tube Half Shaft
PART No
Implement End Std
Outer Tube Half Shaft
Half Shafts compatible with this SHAFT SERIES
Position
Length
Big Pack 12130
Big Pack 12130 XC
Big Pack 4X4
Big Pack 4X4 HS

Big Pack 4X4 HX-XC|

REFER to below chart for

Big Pack 1290 HDP

Big Pack 1290 HDP-HS
Big Pack 1290 HDP-HS-XC
Big Pack 1290 HDP-XC


1 3/8" x 6 Spline

1 3/4" x 6 Spline Clamp Yoke


TRACTOR
TO
BALER
1.3m (51")

1 3/8" X 21 Spline

1 3/4" x 20 Spline

SEE BELOW FOR UPGRADE TO LARGEST
P675 SERIES DRIVELINE

APPLICATION
PART No
Tractor End wide angle
Inner drive tube Half Shaft
PART No
Implement End Std
Outer Tube Half Shaft
Half Shafts compatible with this SHAFT SERIES
Position
Length
Big Pack 12130
Big Pack 12130 XC
Big Pack 4X4
Big Pack 4X4 HS
Big Pack 4X4 HX-XC

1 3/8" x 6 Spline

1 3/4" x 6 Spline Clamp Yoke

P675 SERIES
Heat Treated Star Profile
Drive Tube
75 degree Wide Angle Joint

TRACTOR
TO
BALER
1.3m (51")

1 3/8" X 21 Spline

1 3/4" x 20 Spline

Big Pack 1290 HDP
Big Pack 1290 HDP-HS
Big Pack 1290 HDP-HS-XC
Big Pack 1290 HDP-XC

These machines have Hydraulic Motor Assist

1 3/8" x 6 Spline

Shaft Less End Yoke

+

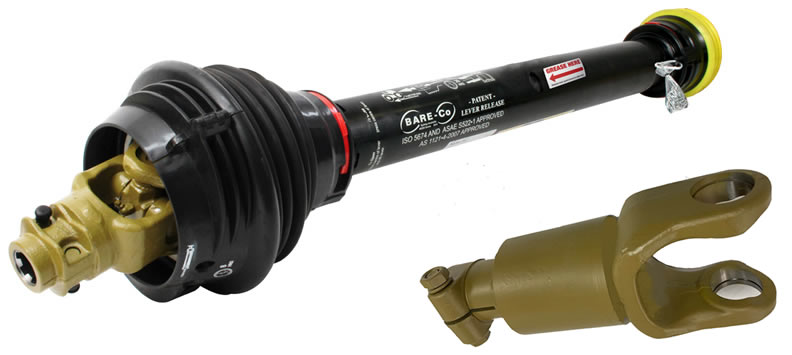

RK26134

1 3/4" x 6 Spline

Freewheel Yoke


1 3/8" X 21 Spline

1 3/4" x 20 Spline
