Splined Shafting & Coupling Sleeves
Splined Shafting & Couplings
SPLINED SHAFT
PART No.
DESCRIPTION
SPLINE SIZE
LENGTH
B283
Splined shafting
1045 carbon steel
1 3/8" dia x 6 spline
10" (250mm)
B6283
29 1/2" (750mm)
B7283
9.8ft (3 mtrs)
B2657
1 3/8" dia x 21 spline
10" (250mm)
1 3/4 dia x 20 spline
10" (250mm)
B9657
1 3/4 dia x 20 spline
39" (1000mm)
B8283
Heat treated high tensile grade 8
1 3/8" dia x 6 spline
10" (250mm)
B8657
1 3/4" dia x 20 spline
10" (250mm)
SHAFT COUPLINGS

PART No.
DESCRIPTION
SPLINE SIZE
LENGTH
B287

Splined sleeve
1045 carbon steel

1 3/8" dia
6 spline
3 1/4" (82mm)
B7287
6" (150mm)
B2418
1 3/8" x 21 spline
3 1/4" (82mm)
B6418
1 3/4" x 20 spline
6" (150mm)
B8287
Heat treated high tensile grade 8
1 3/8 dia x 6 spline
6" (150mm)
B9418
3" dia (75mm) O.D. 1 3/4" x 20 spline
Heavy wall 6" (150mm)

EXTENSION KITS
Include heat treated heavy wall splined sleeve and 10" (250mm) splined shaft
KIT
DESCRIPTION

1 3/8" x 6 spline
Contains:
B8283 x 1
B8287 x 1

B3609

 1 3/4" x 20 spline
Contains:
B9418 x 1
B8657 x 1

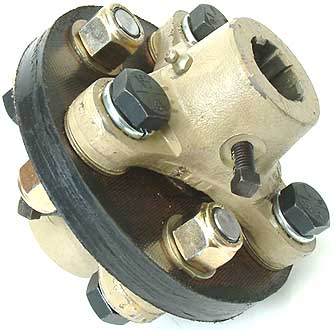

FLEXIBLE DISC COUPLING
B4607 B6607
B4607
6" dia (152mm)
DISC COUPLING - Grub Screw Type
1 3/8" x 6 spline female
6" dia (152mm) DISC COUPLING - Clamp Type 1 3/8" x 6 spline female
6" dia (152mm) REPLACEMENT FLEXIBLE DISC 3/4" (19mm) thick

SHAFT LOCKING PINS
B8100
1/4" (6mm) diameter pin

B6100
5/16" (8mm) diameter pin

B6101
3/8" (10mm) diameter pin

For use inside implement safety guard
or as standard fastener
Splined Shafting & Couplings
