MF - Front Axle
Front Axle
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
Keyway Position
Models with Radius Rods
RH Axles have
the keyway here

LH Axles have
the keyway here

Keyway Position
Models without Radius Rods
LH Axles have
the keyway here


RH Axles have
the keyway here

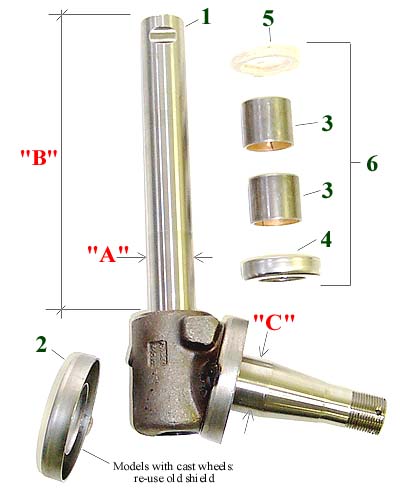

Application
Axle
Size
1
2
Dust Shield
3
Bush
4
Thrust
Bearing
5
Spindle
Seal
6
King Pin
Repair Kit
LH Axle
RH Axle

Te20
MF35
(see below for few very late models)

A=32mm
B=280mm
C=32mm

B520
=
180349M92
B521
=
180346M92
N/R
B2150
=
180345M1
B2151
=
195175M1
B112
=
180355M1
B278
(2 REQ)

Very lateMF35 after 368616, MF135
MF148, 230, 240, 250

A=32mm
B=280mm
C=35mm

B526
=
897237M93
B527
=
897236M93
B7393
=
897232M1

MF65 Std Duty
Std Clearance

A=32mm
B=295mm
C=32mm

B522
=
897570M91
B523
=
897569M91
N/R
B2161
=
196060M1
B279
(2 REQ)

Very late MF65
After Ser. No. 601685

A=32mm
B=295mm
C=35mm

B273
B274

MF65 Std Duty
High Clearance

A=32mm
B=455mm
C=32mm

B524
=
897572M91
B525
=
897571M91

MF65 Heavy Duty



N/A
N/A
B2162
=
183086M1
B2163
=
196167M1
B113
=
183021M2
B281
(2 REQ)

Standard Duty
(NON Australian Spec.)
MF165, 168, 265, 275
550, 565

A=38mm
B=295mm
C=35mm

B7066
=
897231M94
B7067
=
897230M93
B7393
=
897232M1

Low Clearance H.D.
(Australian) MF165, 265

A=38mm
B=260mm
C=46mm

B2157
=
898222M95
B2158
=
898221M93
B7392
=
898350M1

High Clearance H.D. (AUST)
MF165 + ALL Australian
MF168, 185, 188, 265, 275, 285, 290, 565, 575, 590, 675, 690 + LATE MF175, 178
H.D. Std Clearance from Ser. No. 724937

A=38mm
B=335mm
C=46mm

B2159
=
897476M95
B2160
=
897475M93

Early MF175, 178 H.D.
Standard Clearance
to Ser. No.724936

A=38mm
B=380mm
C=46mm

B5201
=
897386M95
B5202
=
897385M95

N/R

MF175, 178 H.D.
High Clearance

A=38mm
B=403mm
C=46mm

B6793
=
883570M93

B6794
=
883569M93
B7392
=
898350M1

MF175, 178 Std. Duty
NOT Australian Spec.

A=38mm
B=352mm
C=35mm

B284
=
897457M96
B285
=
897456M96
N/A

MF1080 ALL + MF1085
Standard Duty

A=38mm
B=400mm
C=35mm

B276 L.H. + R.H.
=508572M92

MF1080 + MF1085
Heavy Duty

A=38mm
B=400mm
C=46mm

B9841 L.H. + R.H.
