MF - Internal Hydraulics
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only
 3 |
|
|
27 |
 |
 |
|
Ref
|
Part
No.
|
Replaces
|
Description
|
Nominal
Pressure
|
Application
|
|
1
|
B703
|
204887
|
Relief
Valve |
2050
p.s.i.
|
Te20
to no. 330043 (valve in hyd. pump)
|
|
2
|
B702
|
883402M94
|
2750
p.s.i.
|
MF35,
MF65
|
|
B2389
|
884747M91
|
2950
p.s.i.
|
MF135,
148, 165, 168, 175, 178, 1080, 1085
|
|
3
|
B705
|
1053
|
Control
Valve
[B708 includes drilling template to update
early pumps] |
Te20
(replaces all types)
|
|
4
|
B706
|
189427M92
|
MF35,
MF65
|
|
5
|
B708
|
1862486M96
|
MF135,
148, 165, 168, 175, 178
MF185, 188
prior to MKlll pump only
|
|
5A
|
|
1617141M91
|
MF1080
, 1085 (US Model 285) |
|
6
|
B5208
|
1681789M91
1870763M92
|
MF148,
MF165, MF168, MF185, MF188
*MKlll pump only MF240, 250, 265,
275
(MF285
Non USA model), 290, 298,
550, 565, 590, 675, 690
MF698, 699, 365, 370, 390, 398, 399, 1080
|
|
7
|
B704
|
2496
|
Poppet
Valve (4 req.) |
Te20
hyd. pump end plate
|
|
8
|
B2374
|
1810678M91
|
Valve
Chamber Kit (2 req.)
(includes 3 alt circlip types) |
All
MF models after Te20
i.e. Mkl - Mkll - Mklll pumps
|
|
9
|
B2375
|
184471M1
|
Complete Valve Chamber
(includes valves & plugs)
|
MF35,
MF65
(2 req.)
|
(23mm
dia pistons)
|
|
10
|
B6629
|
1868734M3
888702M1
1868435M3
|
Complete
Valve Chamber
(includes valves & plugs)
Latest design with large dia wire circlips |
MF135,
148, 165, 168, 175, 178, 185, 188
MF1080, 1085, MF240, 245, 265, 275, 290
MF 550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699
|
|
11
|
B2379
|
190799M1
|
Piston
(2 req.) |
MF35,
MF65
|
(23mm
dia)
|
|
B2380
|
186038M1
|
All
MF models after MF65
|
(25mm
dia)
|
|
12
|
B2381
|
892604M1
|
Piston
Ring
(4 req.) |
MF35,
MF65
|
(23mm
dia)
|
|
B2382
|
897493M1
|
All
MF models after MF65
|
(25mm
dia)
|
|
13
|
B2377
|
180924M2
|
Rear
Cam Block (without lip) |
All
MF models after Te20
|
|
14
|
B2378
|
180925M2
|
Front
Cam Block (with lip) |
|

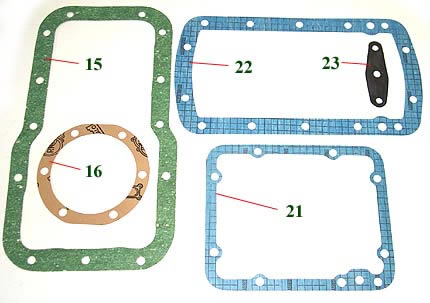

15
|
B2383
|
181408M1
|
Hyd.
Lift Cover Gasket |
|
16
|
B1839
|
181217M1
|
Side
Plate Gasket |
All
non Italian models incl. Te20
|
|
17
|
B1802
|
894906M91
|
"O"
Ring Kit
Pump + Lift cover |
MF35,
65, 135, 148, 165, 168, 175, 178, 185, 188
*MKll - lll pumps use full kit below
|
|
B4802
|
No
Equivalent
|
BARE-Co
Full Kit - all internal gaskets + "O" rings
Covering Mkl - Mkll - Mklll pumps + hyd. lift cover |
Universal
kit covers all (non Italian)
MF models after Te20
i.e. MKl - MKll + MKlll pumps
|
|
18
|
B466
|
195561M1
|
Standpipe
"O" Ring (317mm) |
All
(non Italian) models from MF35
onwards
|
|
B467
|
195874M1
|
Standpipe
Backup Ring |
| 19
|
|
898643M1 |
Hydraulic
Pump Locating Dowel |
MF135, 148, 165, 168, 175, 178, 185, 188
MF1080, 1085 |
19a |
B6136
|
898937M1
|
MF240, 245, 265, 275, 290
MF 550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699 |
|
20
|
B468
|
898229M1
|
Plain
Standpipe (317mm)
Can be used to decommission pressure control on late
tractors |
MF35,
65, 135, 165, 175, 178
|
|
21
|
B1837
|
4082
|
Pump
Base Gasket |
Te20
|
|
22
|
B1836
|
7042
|
Lift
Cover Gasket |
|
23
|
B1840
|
104275
|
Ram
Cylinder Gasket |

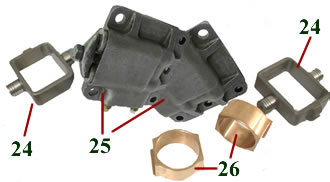

24 |
|
|
Piston (2 req.) |
25 |
|
|
Pair of Complete Valve Chambers |
26 |
|
|
Pair of Cam Blocks |
27 |
|
|
Hydraulic Gasket Set |
|
