ENGINE KITS & PARTS
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
ENGINE/
APPLICATION
ENGINE KIT
* See Note Below
PISTON (STD)
INCLUDING RINGS
RING SET
(1 CYL)
LINER
* See Note Below
WRIST PIN
BUSH
PAIR OF
CON ROD BEARINGS


3 Cyl Engine Kits & Parts body {FIAT16.htm}
SCROLL DOWN FOR DATA

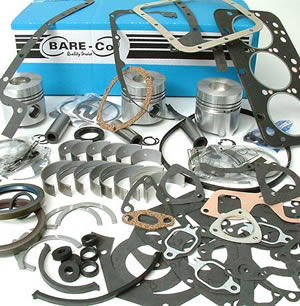

"EK" BASIC ENGINE KITS
  • For overhaul of engine without removal from the tractor - ie. crankshaft NOT removed.
  • Includes: Pistons, Rings, Conrod Brearings (state size reqd.), full engine Gasket Set.
  • Liners included where originally fitted
    (Wet sleeve models only).

"EKM" FULL ENGINE OVERHAUL KITS

Includes: all the above PLUS:
Main Bearings (state size reqd.), Thrust Washers, Crakshaft Seals.
3 CYLINDER ENGINES (see below for 4, 5 & 6 cyl)
8035.01 Engine
3 Cyl 95mm bore
450, 470 (95mm bore model)
EK33
*
EKM33
B7100
=4637971
1900691
B7095
=1901496
B7104 *
=4599351
B7114
32mm
(1 1/4") I.D.
=4555699
(2 req
per rod)

B7109
STD
=1901609

B7110
-0.254mm
(-.010")
=1901610
8035.02 Engine
3 Cyl 100mm bore
450 (100mm bore only)
480, 500, 540, 446, 466
EK34
*
EKM34
B7101
=79037500
B7096
=1909172
1908737
B7105 *
=4653280
8035.04 Engine
3 Cyl 103mm bore
566, 570, 580
EK88
*
EKM88
B7102
=1902430
1908748
B7097
=1909234
B7106 *
=4679201
B7115
34mm
(1.340") I.D.
=4754066
(2 req
per rod)
8035.06 Engine
3 Cyl 100mm bore
55-46, 55-56, 55-65, 45-66, 50-66, 55-66,
55-75, 45-76, 55-76, 55-85, 50-86, 55-88,
55-90
EK110
*
EKM110
B3061
=1930241
B3062
=1930169
B3063 *
=4770654
B3067
38mm
(1 1/2") I.D.
=4766404
(1 req
per rod)

B3068
STD
=1930181

B3069
-0.254mm
(-.010")
=1930182
8035.05 Engine
3 Cyl 104mm bore
60-46, 60-56, 60-65, 60-66, 60-75, 60-76,
60-85, 60-86, 62-86, 60-88, 60-90, 60-93,
60-94
EK111
*
EKM111
B3064
=1930186
B3065
=1930191
B3066 *
=4770623
CN3 Engine
3 Cyl 110mm bore
650
N/A
N/A
B7098
=1901481
B364 **
=8815939
B988
=8828445
(1 req
per rod)

B7111
STD
=1901614

B7112
-0.254mm
(-.010")
=1901615
* LINERS NOT INCLUDED IN THESE ENGINE KITS (NOT ORIGINALLY FITTED) - ORDER SEPARATELY.
** LINERS INCLUDED (WET SLEEVE ENGINE).

4, 5 & 6 CYLINDER ENGINES
615.000 Engine
4 Cyl 85mm bore
411R, 415 Diesel

EK32
*
B7099
=1909866
B7094
=1909861
B7103 *
=561212
B7113
=561276
(1 req
per rod)
B7107
STD
=1909856
B7108
-0.254mm
(-.010")
=1909857
8045.01 Engine
4 Cyl 95mm bore
550
EK87
*
EKM87
B7100
=4637971

1900691
B7095
=1901496
B7104 *
=4599351
B7114
32mm
(1 1/4") I.D.
=4555699
(2 req
per rod)

B7109
STD
=1901609

B7110
-0.254mm
(-.010")
=1901610
8045.02 Engine
4 Cyl 100mm bore
600, 640, 666, 670, 680
EK35
*
EKM35
B7101
=79037500
B7096
=1909172

1908737
B7105 *
=4653280
8045.04 Engine
4 Cyl 103mm bore
766, 780
EK36
*
EKM36
B7102
=1902430

1908748
B7097
=1909234
B7106 *
=4679201
B7115
34mm
(1.340") I.D.
=4754066
(2 req
per rod)
8055.04 Engine
5 Cyl 103mm bore
880/5
EK89
*
EKM89
8045.06 Engine
4 Cyl 100mm bore
65-46, 65-56, 70-56, 70-65, 65-66, 70-66,
70-75, 70-76, 72-85, 70-86, 72-86, 65-88,
70-88, 65-90, 70-90, 65-93, 72-93, 65-94,
72-94, L65
EK112
*
EKM112
B3061
=1930241
B3062
=1930169
B3063 *
=4770654
B3067
38mm
(1 1/2") I.D.
=4766404
(1 req
per rod)

B3068
STD
=1930181

B3069
-0.254mm
(-.010")
=1930182
8045.05 Engine
4 Cyl 104mm bore
85-55, 80-66, 80-75, 80-76, 82-85, 82-86,
80-88, 80-90, 82-93, 82-94, L75
B3064
=1930186
B3065
=1930191
B3066 *
=4770623
CO3 Engine
4 Cyl 110mm bore
750, 880
B970
=1909211
B7098
=1901481
B364 **
=8815939
B988
=8828445

(1 req
per rod)
B7111
STD
=1901614
B7112
-0.254mm
(-.010")
=1901615
8065.02 Engine
6 Cyl 100mm bore
980, 1000
B7101
=79037500
B7096
=1909172
1908737
B7105 *
=4653280
B7114
32mm
(1 1/4") I.D.
=4555699
(2 req/ rod)

B7109
STD
=1901609

B7110
-0.254mm
(-.010")
=1901610
8065.04 Engine
6 Cyl 103mm bore
1000 S , 1180
B7102
=1902430

1908748
B7097
=1909234
B7106 *
=4679201
B7115
34mm
(1.34") I.D.
=4754066
(2 req/ rod)
CP3 Engine
6 Cyl 110mm bore
1300, 1300 S
N/A
N/A
B7098
=1901481
B364 **
=8815939
B988
=8828455

(1 req
per rod)
B7111
STD
=1901614
B7112
-0.254mm
(-.010")
=1901615
* LINERS NOT INCLUDED IN THESE ENGINE KITS (NOT ORIGINALLY FITTED) - ORDER SEPARATELY.
** LINERS INCLUDED (WET SLEEVE ENGINE).
