Roll Over Protection Frames
Roll Over Protection Frames
  • Tested and Approved to the following standards: AS/1636, ISO5700, SAE J2194
  • Every frame listed held in stock at your nearest BARE-Co Warehouse for instant despatch

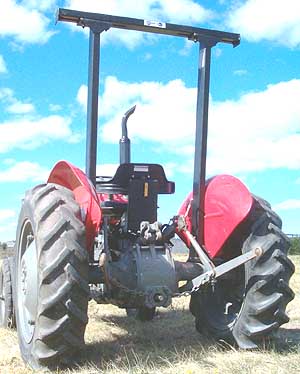

  •  MF1, F1 design shown above

    EMF1 - Hoop Type Design shown above

    Click Pic above for SEAT BELTS

    New!

    F10 - Heavy Duty, Low Cost
    Folding ROP Frame
    R.O.P. FRAMES (2 Post unless 4 Post stated)
    DESCRIPTION
    PART No.
    HEIGHT
    above top of axle housing (cm)
    WT. Kg
    CASE / DAVID BROWN
    Late models with solid reinforcing bars under flat top mudguards, 4 post frame bolts on top of mudguards.
    CASE2
    (4 post)

    56
    CHAMBERLAIN
    354, C6100 (without 3 point linkage)
    CHAMB2
    165
    102
    FORD
    DEXTA, 2000, 2100, 3000
    MF1

    163

    44
    Economy frame (hoop type) FORD DEXTA, 2000, 2100, 3000
    EMF1
    160
    36
    MAJOR, POWER MAJOR, SUPER MAJOR, 3600, 3610, 4000, 4100, 4600
    4610 (4610 with reinforced guards req spacer block)
    5000, 5600, 5610, 6600, 6610, 7000, 7600
    F1

    163

    80
    8000, 8600, 9600
    F2
    229
    131
    I.H.C. , CASE
    B250, B275, A414, 434, 374, 384, 444 (handbrake on mudguard)
    F1

    163

    80
    B 414 (UK. built - handbrake not on mudguard)
    F1
    + KHB2 h/brake kit

    163

    81
    564 with square axle housing
    IHC4SQ
    165
    90
    624 German model with round axle
    IHC7
    193
    110
    JD
    1010, 1020, 1030, 1120, 1130, 1630, 2010, 2020, 2120, 3010
    Not suitable for models fitted with high mounted seats
    If in doubt order JD2, below
    F1

    163

    80
    4230, 4240, 4250, 4420, 4430
    JD3
    226
    145
    KUBOTA
    L185, L245, L295
    KB2

    34

    M4050

    F1
    163
    80
    MASSEY FERGUSON
    TE20, MF30, 130, 35, 135, 148, 240
    MF1

    163

    44
    Economy frame (hoop type) TE20, MF35, 135, 148

    EMF1
    160
    36
    MF65, 165, 168, 175, 178, 185, 188, 250, 265, 275, 290, 298, 675, 690
    (round or square axles) *high clearance tractors with thick (6") mudguard spacers-order 14" bolt kit (special)
    F1

    163

    80
    NEW   Heavy Duty Low Price, Folding ROP
    Fits ALL Ferguson - MF models shown above.
    F10

    169

    100
