AW10138
Cotter Bolt
= Walterscheid 65.12.06
Suits Walterscheid 1 3/8" yokes & clutches
|
|
|
AW10134
Cotter Bolt
= Walterscheid 65.12.08
Suits Walterscheid 1 3/4" yokes & clutches
|
|
B3728
Replaced by B3724 below
↓
|
|

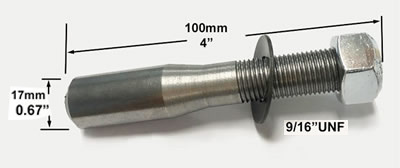

B3724
Upgrade Cotter for 1 3/4" Splined base Bare-Co Clutches |
|
|
B4728 Cotter Bolt for
BareCo 8" (200mm) 1 3/8" Splined Clutch |
|
|
B4727 Cotter Bolt for
BareCo 6" (150mm) 1 3/8" Splined Clutch |
|
"A"
replaces 13mm / 13.8mm / 14mm
|
B1090
exclusive BARE-Co design
Replaces HARDY SPICER - Early BARE-Co
-
Early BYPY - LUPPY |
|
"A"
= 15.8mm
|
AB134
suits large size yokes (8-9 series)
with button as illustrated (Old BARE-Co
/ BYPY types) |
|
Shielded type yokes
|
|
AB121
suits late type BYPY - BARE-Co shafts
1 3/8" (35mm) Spline Diameter
Shielded or unshielded yokes
|
|
|
A134
Suits Bare-Co shielded yokes
1 3/4" (44mm) Spline Diameter
|
|
|
AB120
suits old type (non shielded) BYPY & Bare-Co yokes 1
3/4" (44mm) Spline Diameter |
|
|
AW138
suits WALTERSCHEID early type =AGRASET 101-14.8MM
AW134 Suits large 1
3/4"
spline - early type yokes =AGRASET 102-18MM |
|
|
AW121
suits WALTERSCHEID - BARE-Co late
type =AGRASET 101-14.8MM
AW120 suits large 1
3/4"
spline yokes =AGRASET 102-18MM |
