MF Hydraulic Top Links
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only
Standard Hydraulic Top Link
Does NOT include Anti-Creep Valve

    CLICK HERE for these connecting fittings.
Part No.
Linkage Category
Length "A"
Cylinder Bore
Port Size
Cat. 1 (3/4")
18.5" to 26" (470 to 660mm)
2" (25.4mm)
3/4 UNF
(UN O-Ring)
20.5" to 28" (520 to 710mm)
24" to 32 " (610 to 812mm)
Cat. 2 (1")
21.5" to 29.5 " (546 to 750mm)
2 1/2" (63mm)
24.5" to 32 " (622 to 812mm)

Heavy Duty Hydraulic Top Link
Includes Anti-Creep Valve

B8111
Cat 2 (1" dia) ball both ends
  • includes anti-creep valve
  • adjustment range 620mm to 890mm
  • cyl bore dia 63mm
  • piston rod dia 35mm
B8112
Cat 3 (1¼" dia) ball both ends
  • includes anti-creep valve
  • adjustment range 680mm to 890mm
  • cyl bore dia 80mm
  • piston rod dia 40mm

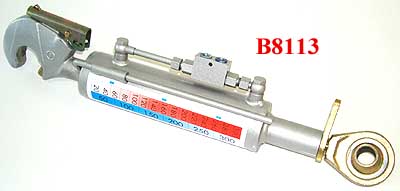

B8113
Cat 3 ball end + Cat 3 quick hitch claw other end
  • other specs as B8112 (above)
SPARE PARTS
B8114

Seal Repair Kit suit B8111 Top Link
B8115

Seal Repair Kit suit B8112/B8113 Top Link
B8116

Replacement Check Valve Assy
B8118

Threaded Cat 3 Ball End to suit B8112/B8113 Top Link
B8119

Piston Rod Only to suit B8111 Top Link
B8120

Piston to suit B8111 Top Link
B8121

Piston Rod Only to suit B8112 Top Link
B8122

Piston to suit B8112 Top Link
