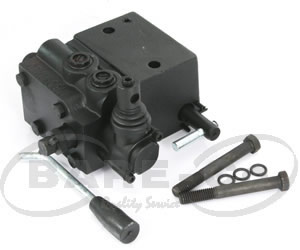

MONOBLOCK ISOLATER / CONTROL VALVE
Valve Part No. B7210
  • Allows operation of one double acting ram or tractor 3 point linkage
  • Suits all MF UK models (MF35 onwards)
  • Ports 3/8" B.S.P. (hoses not included)
    Click Here for Hydraulic Thread Adaptors
ISOLATER VALVES
B5210 SUITS ALL MF UK MODELS

From MF35 Onwards

POSITION 1: tractor lift arms - both external ports isolated

POSITION 2: to external port "A"- tractor lift arms locked

POSITION 3: to external port "B"- tractor lift arms locked

SINGLE ACTING REMOTE RAMS: operation is by tractor quandrant control lever via a single hose to each cyl from port "A" or "B" oil flows and returns through the same hose. Valve return port is not used.

DOUBLE ACTING EXTERNAL RAMS: req. a double acting control valve (prev. page) to be connected to port "A" or port "B" with return hose connected to valve return port. Tractor quadrant is left in up position with tractor linkage isolated in partially raised position. Control is by remote spool valve.



Port 3/8" BSP
B911* SUITS FIAT

450, 480, 500, 540, 550, 600, 640, 650

*For applications with double acting rams also order:
B9024 Double Acting Adaptor

Ports 16mm x 1.5mm Thread


       B9024B911
B8210 SUITS FORD 3 CYL MODELS

2000, 3000, 4000, 2600, 3600, 4100, 4600
2610,
3610, 3910, 4110, 4610

Port 9/16" J.I.C.
