Front Axle / Steering
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

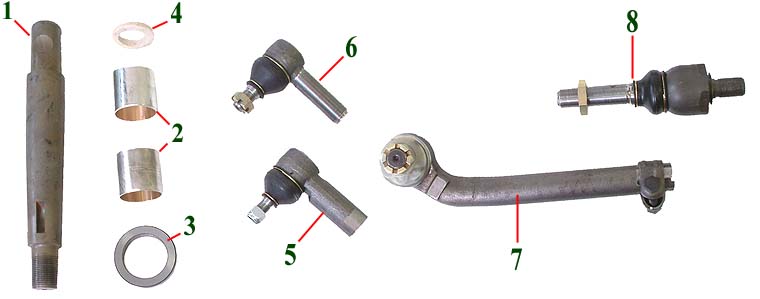

Ref. Part No. Replaces Description Application
1 B668 CHAM50161
CHAM37289
CHAM60296
Spindle (King Pin) 324mm long
(Confirm Length)

Champion 236, MKIII, C6100, Champion 306,
Countryman 306,

[Countryman 354, C670 with fixed width front axle)
3380 fitted with original type 2 piece stub axle

B669 CHAM61071

Spindle (King Pin) 353mm long
(Confirm Length)

4080, 4080B, 4280 fitted with original type 2 piece stub axle
2 B2982 CHAM37080
CHAM60667

Bush

Champion 236, MKIII, C6100, Champion 306,
Countryman 306,
Countryman 354, C670,
3380, 4080, 4280,
4480, 4090, 4290, 4490, 4690
3 B2927 CHAM37092

Thrust Bearing

4 B113 CHAM37089
E1222M
CHAM69596

Seal

5 B670 CHAM37094
CHAM63552
CHAM70728
Female End
1" dia. LH Thread

Tie Rod and Drag Link Ends
2 x B670 + 2 x B671 used
Champion 236, MKIII, C6100, Champion 306,
Countryman 306,

[Countryman 354, C670 with fixed width front axle)


9G, Industrial MKII, B671 only used (Female)
from Agric No. DM1504 and from Industrial No. IND1114
B671 CHAM22442
CHAM63551
CHAM70727

Female End
1" dia. RH Thread

6 B4670 CHAM56858 Male End
1" dia. LH Thread

Models with fixed Axle Width:
3380, 4080, 4280, 4480, 4090, 4290, 4490, 4690
Models with Adjustable Width Axle:
use B4671 on RH side only

B4671 CHAM56782

Male End
1" dia. RH Thread

7 B956 AL39315

LH Outer End

4090 Four Wheel Drive

B955 AL39318

RH Outer End

8 B957 AL39316 Inner End
